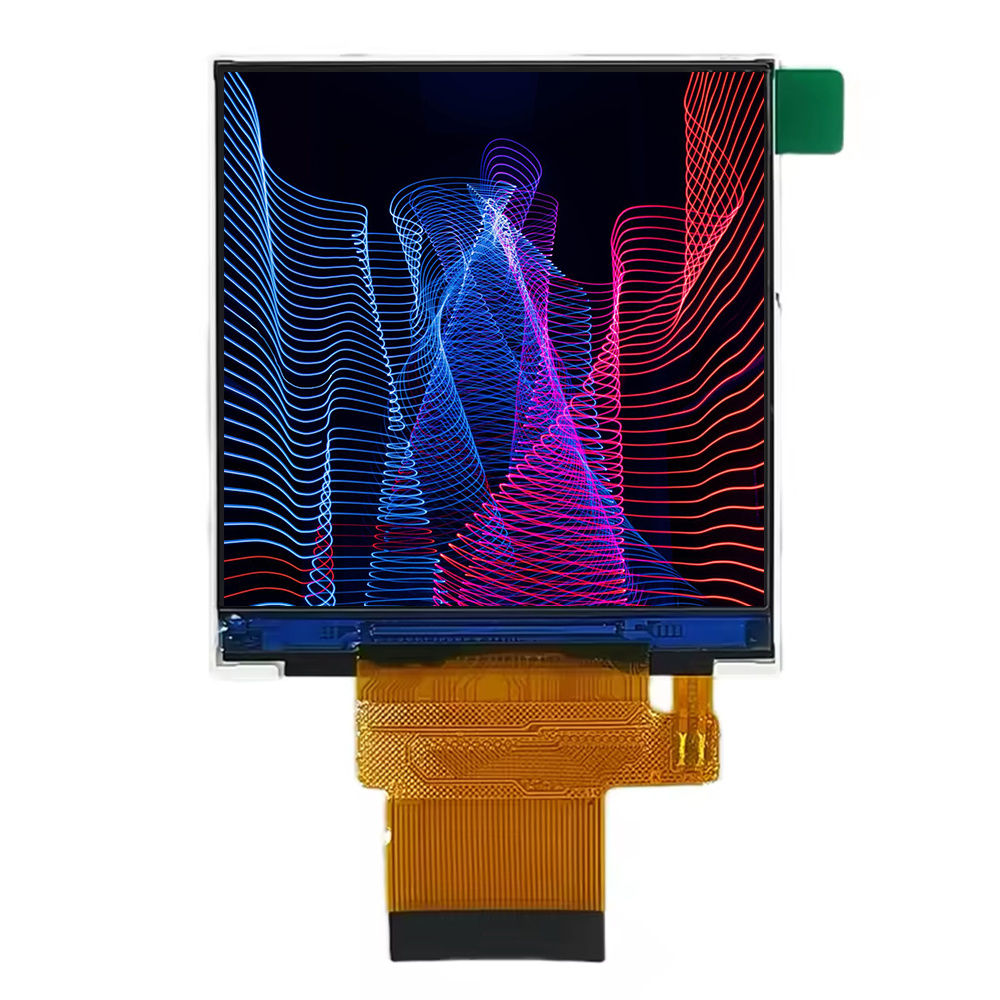

2.73 Inch 320*320 TFT Display Module With ST7796 Driver IC SPI+RGB Interface
MTF0273QH01A-V1
Contact Us：
Product Description
DESCRIPTION
MTF0273QH01A-V1 is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is
composed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The resolution of2.73" contains 320 RGB X320 pixels and can display up to 16.7m colors.
Items | Specification | Unit |
Drive element | a-Si TFT | |
LCM outline size | 53.58 (H) x 58.75 (V) | mm |
Active area | 48.96 (H) x 48.96 (V) | mm |
Number of pixels | 320(H)X320(V) | pixels |
Pixel arrangement | RGB stripe | - |
Pixel Pitch | 153mm x 153 | um |
Display color | 16.7M | color |
Viewing direction | ALL | - |
Controller / Driver | ST7796 | - |
Data interface | SPI3W+RGB18BIT | - |
Backlight | 6 White LEDs In Parallels | - |
