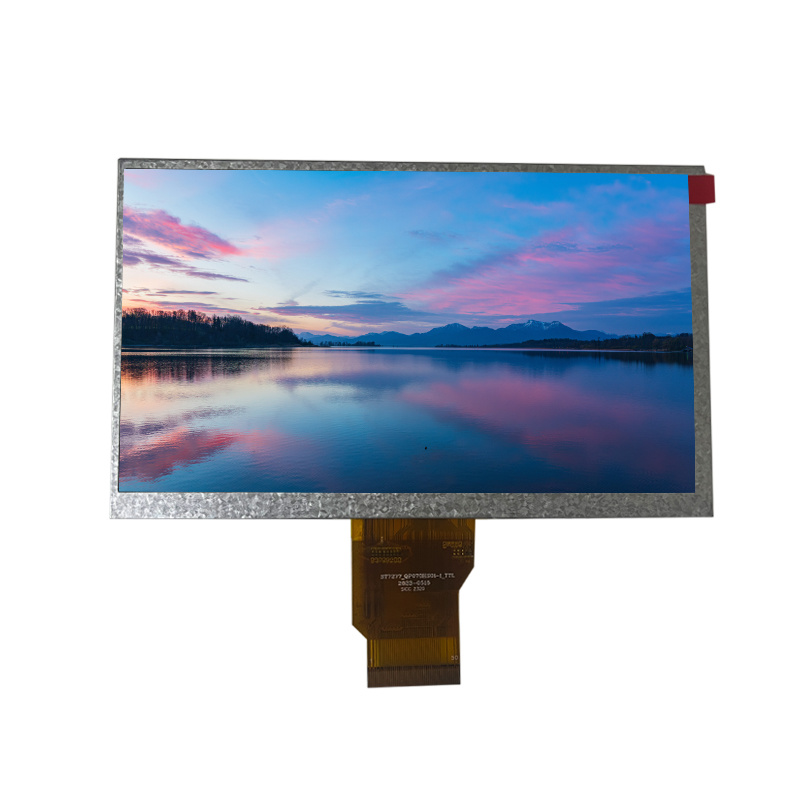

7.0 Inch 600 Nits Single IC Solution 800*480 IPS TFT Display With TTL Interface
MTF070WV110A-V3
Contact Us：
Product Description
This module is a product of 7" color TFT-LCD (Thin Film Transistor Liquid Crystal Display).Thismodule is composed of a TFT LCD panel, a driving circuit and a backlight system.The 7” screen produces a high resolution image that is composed of 384000 (800×480) pixel elements in a vertical stripe arrangement.
Parameter | Specifications | Unit |
Screen size | 7.0 | inch |
Resolution | 800(H)x480(V) | Pixel |
Active area | 153.84(W) × 85.632(H) mm | mm |
Outline dimension | 164.9(W) ×100(H) ×5.7(D) mm | mm |
Display Mode | Normally Black, Transmissive | |
Pixel pitch | 192.3(H) x 178.4(V) | um |
Surface treatment | Anti-Glare | |
Color Depth | 16.7M | |
View Angle direction | ALL | |
Temperature Range (Operation) | -20~70 | ℃ |
| Temperature Range (Storage) | -30~80 | ℃ |
| Interface | TTL |
