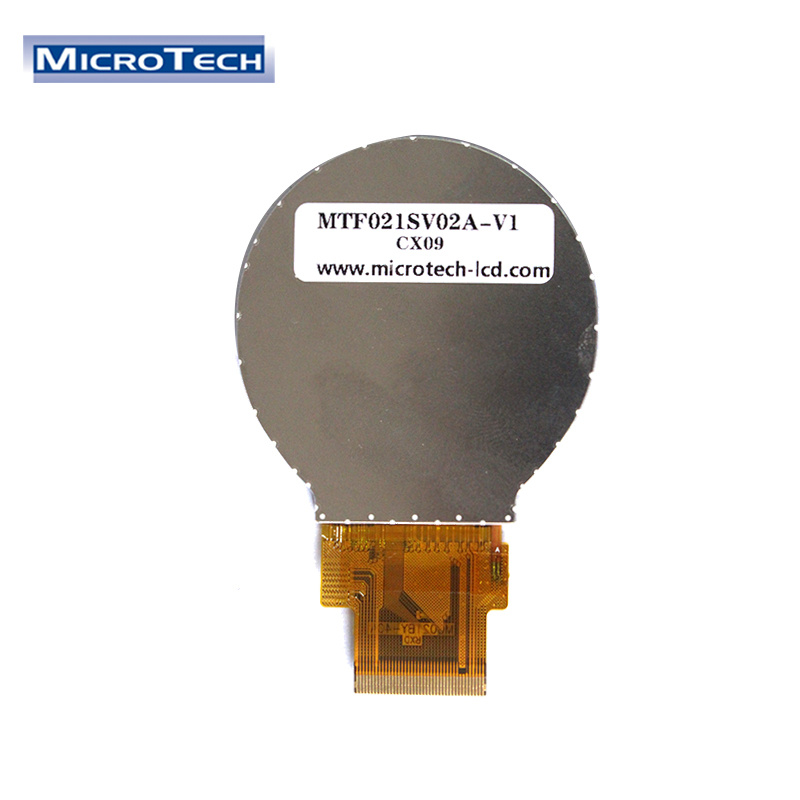

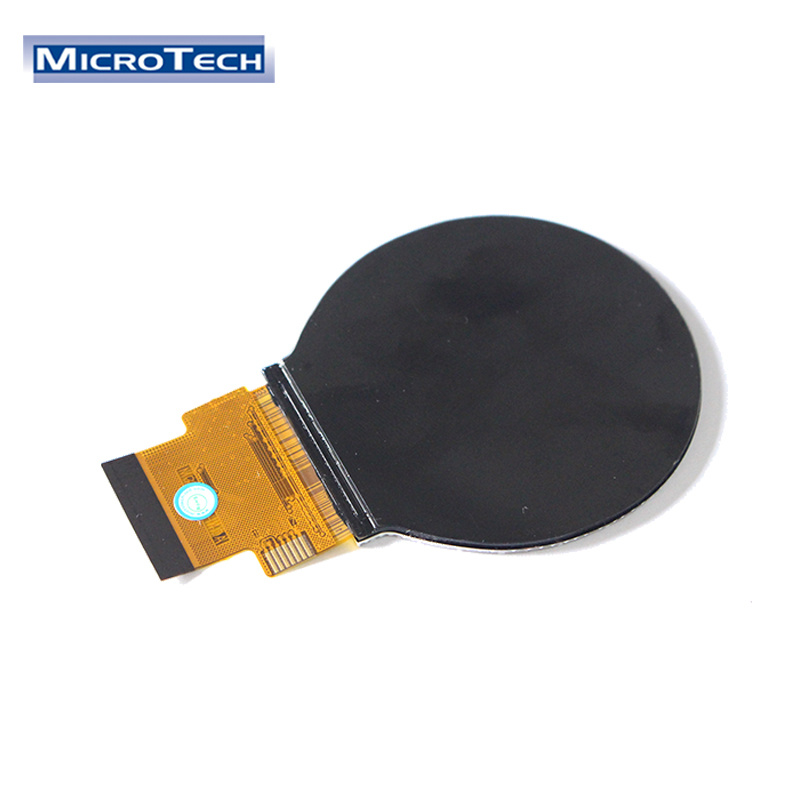

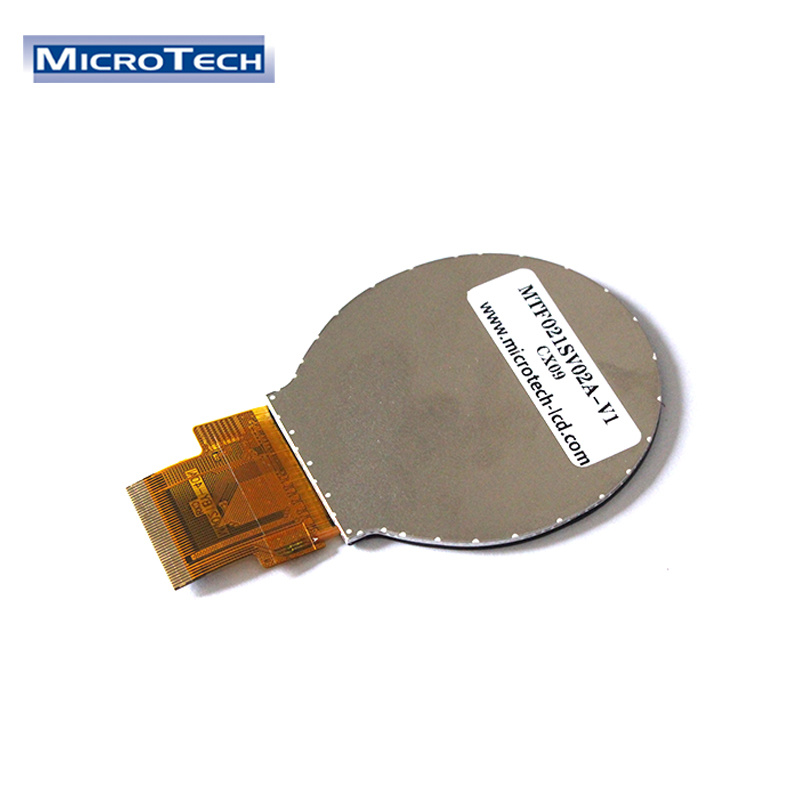

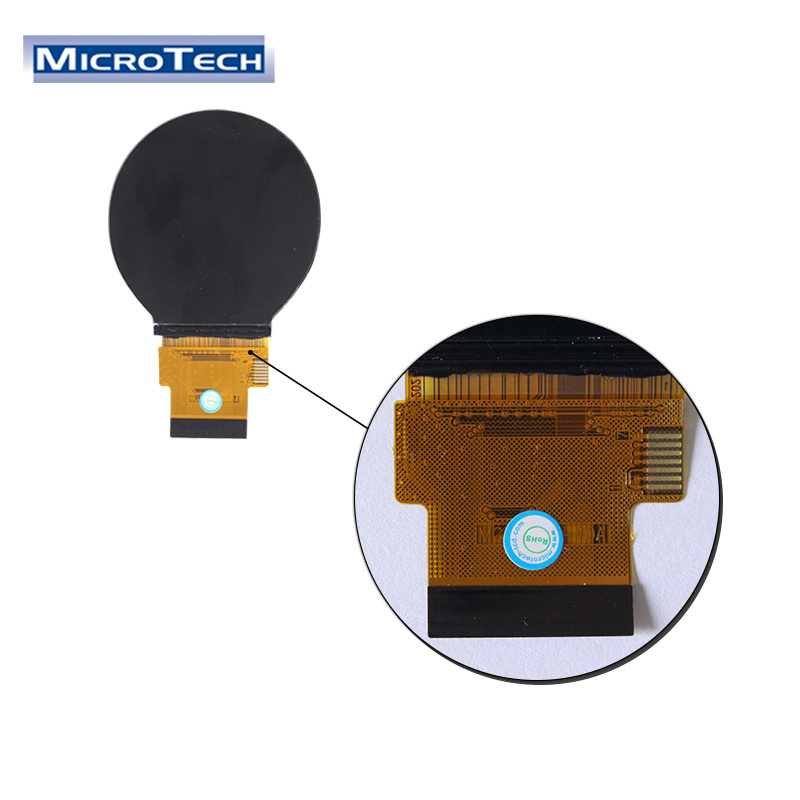

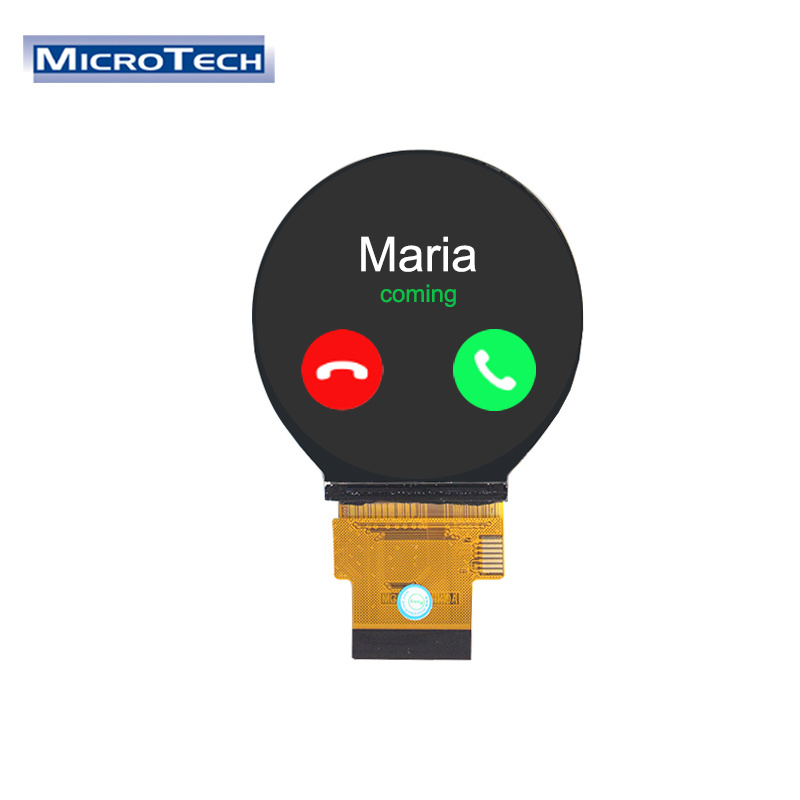

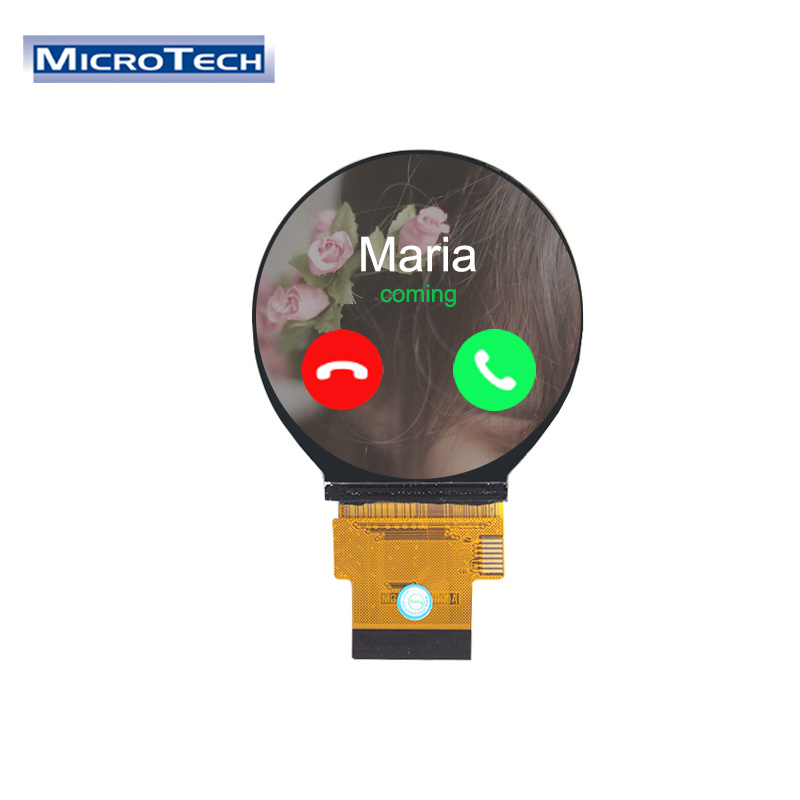

2.1 Inch ST7701S IPS Display Mode 480x480 Round 40 pin LCD Display Custom Touch Screen with Display Panel
MTF021SV02A-V1+CTP
Contact Us：
Product Description
1.GENERAL DESCRIPTION
This module is a TFT (Thin Film Transistor) active matrix LCD (Liquid Crystal Display) module. Each module
comprises:
a 2.1” amorphous silicon colour TFT panel
panel driver electronics
a 3-wire SPI + 18-bit RGB interface board
an integrated backlight
The 2.1” diagonal display active area contains 480 (xRGB) x 480 pixels and can display 16.7M colours. The module can withstand intense environments.
2.FEATURES
RGB stripe configuration
3-wire SPI + 18-bit RGB parallel interface
Display resolution 480 (xRGB) x 480 lines
High contrast TFT LCD drive system
High speed response
High brightness
Single power-supply voltage +2.8 V
Backlight for Long lifetime LED
Extended temperature range
3.APPLICATIONS
Mobile Phone, Smart Handheld Applications VR, AR, smart home etc. Applications

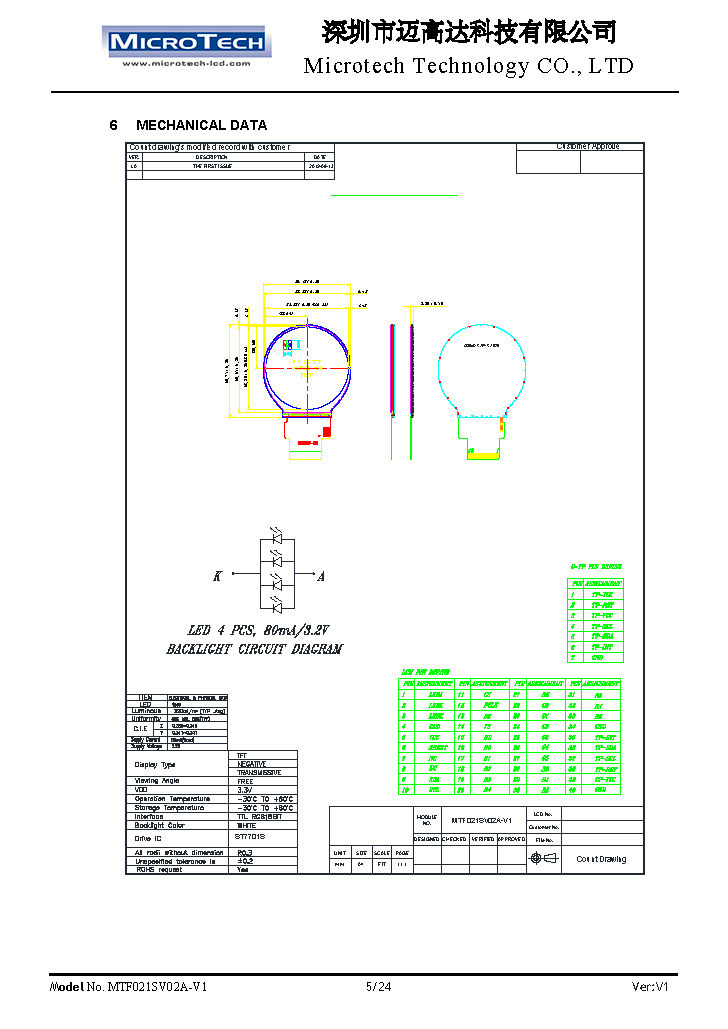

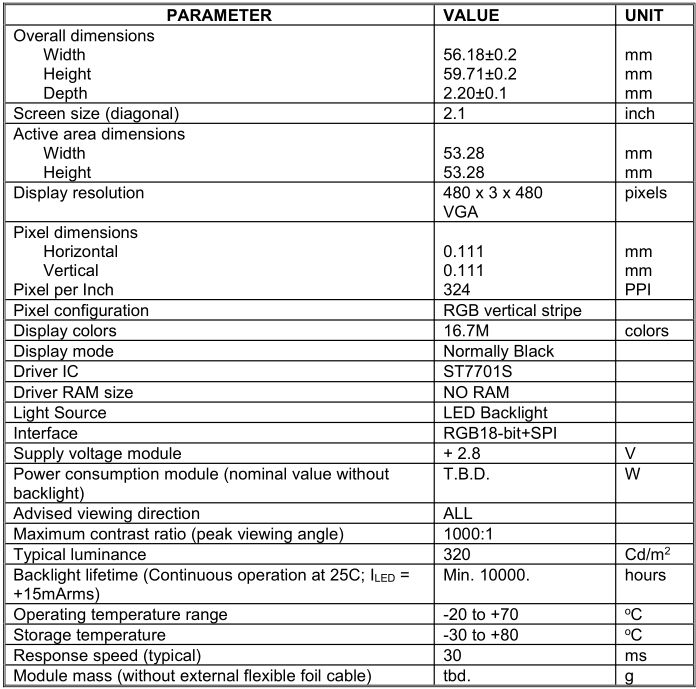

| PARAMETER | VALUE | UNIT |
Overall dimensions Width Height Depth |
56.18±0.2 59.71±0.2 2.20±0.1 |
mm |
| Screen size (diagonal) | 2.1 | inch |
Active area dimensions Width Height |
53.28 mm 53.28 mm | |
| Display resolution | 480 x 3 x 480 VGA | pixels |
Pixel dimensions Horizontal Vertical Pixel per Inch |
0.111 0.111 324 |
mm mm PPI |
| Pixel configuration | RGB vertical stripe | |
| Display colors | 16.7M | colors |
| Display mode | Normally Black | |
| Driver IC | ST7701S | |
| Driver RAM size | NO RAM | |
| Light Source | LED Backlight | |
| Interface | RGB18-bit+SPI | |
| Supply voltage | module + 2.8 | V |
| Power consumption module (nominal value without backlight) | T.B.D. | W |
| Advised viewing direction | ALL | |
| Maximum contrast ratio (peak viewing angle) | 1000:1 | |
| Typical luminance | 320 | Cd/m2 |
| Backlight lifetime (Continuous operation at 25C; ILED = +15mArms) | Min. 10000. | hours |
| Operating temperature range | -20 to +70 | |
| Storage temperature | -30 to +80 | |
| Response speed (typical) | 30 | ms |
| Module mass (without external flexible foil cable) | tbd. | g |
