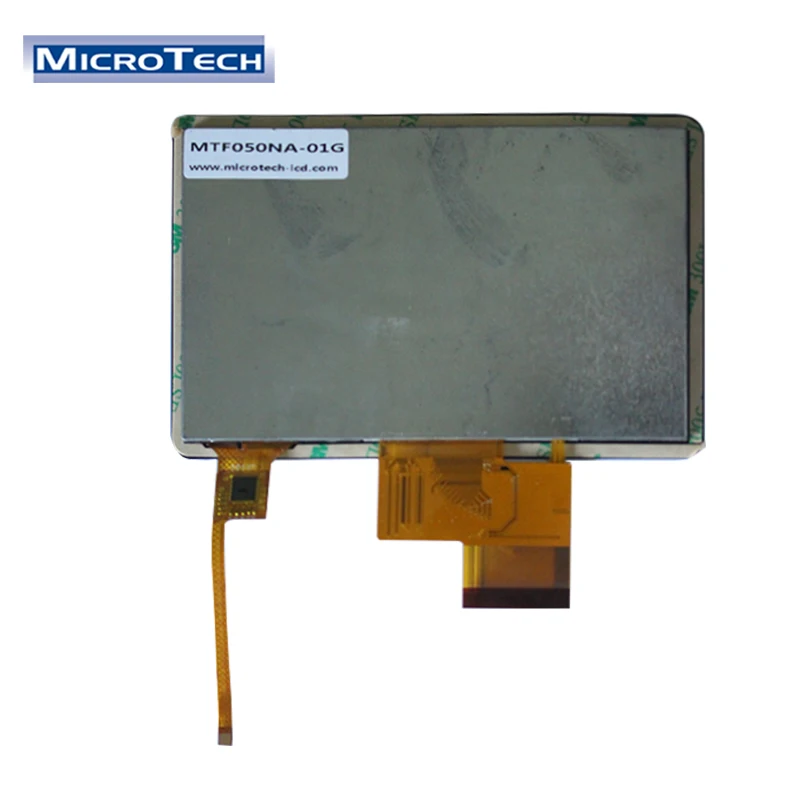

TFT LCD + TP Modules 5 Inch 800 x 480 TFT LCD Touch Display Screen

Size: 5.0 Inch Resolution: 800x480 Display mode: Transmissive Viewing Angle: 6 O'clock Active Area: 108.6x65.4 mm Outline dimension: 128.2*84.1*1.4 mm LCD Type: TFT TRANSMISSVIE Touch panel: CTP Capacitive Touch Panel
Retail price
0.0
Pcs
Market price
0.0
元
Number of views:
1000
Product serial number
MTF05ONA-01G+MTP05GG-13A
Category
TFT with Touch Panel
Quantity
-
+
Stock:
3
1
Description
Parameters
Resolution:
800 x 480
 Part No.  MTF050NA-01G+MTP050GG-13A                                         ( TFT LCD with Capacitive Touch Panel)
 Size  5.0 inch
 Resolution  800*480
 Outline Dimension  128.2*84.1*1.4
 Active Area  108.6*65.4

 Interface

  /
 IC  GT911
 FPC  6pin
 Working temperature  -20℃~70℃
 Storage temperature  -30℃~80℃

TFT LCD + TP Modules 5 Inch 800 x 480 TFT LCD Touch Display Screen for Test InstrumentsTFT LCD + TP Modules 5 Inch 800 x 480 TFT LCD Touch Display Screen for Test InstrumentsTFT LCD + TP Modules 5 Inch 800 x 480 TFT LCD Touch Display Screen for Test InstrumentsTFT LCD + TP Modules 5 Inch 800 x 480 TFT LCD Touch Display Screen for Test InstrumentsTFT LCD + TP Modules 5 Inch 800 x 480 TFT LCD Touch Display Screen for Test Instruments

We could not find any corresponding parameters, please add them to the properties table
Previous
10.1 Inch 350/600/1000 nits 1280x800 LVDS Interface Screen with Touch Panel
Next
4.5 inch 480x854 IPS TFT All View LCM Module with 10 Points Capacitive Touch Screen Module
