Product Description

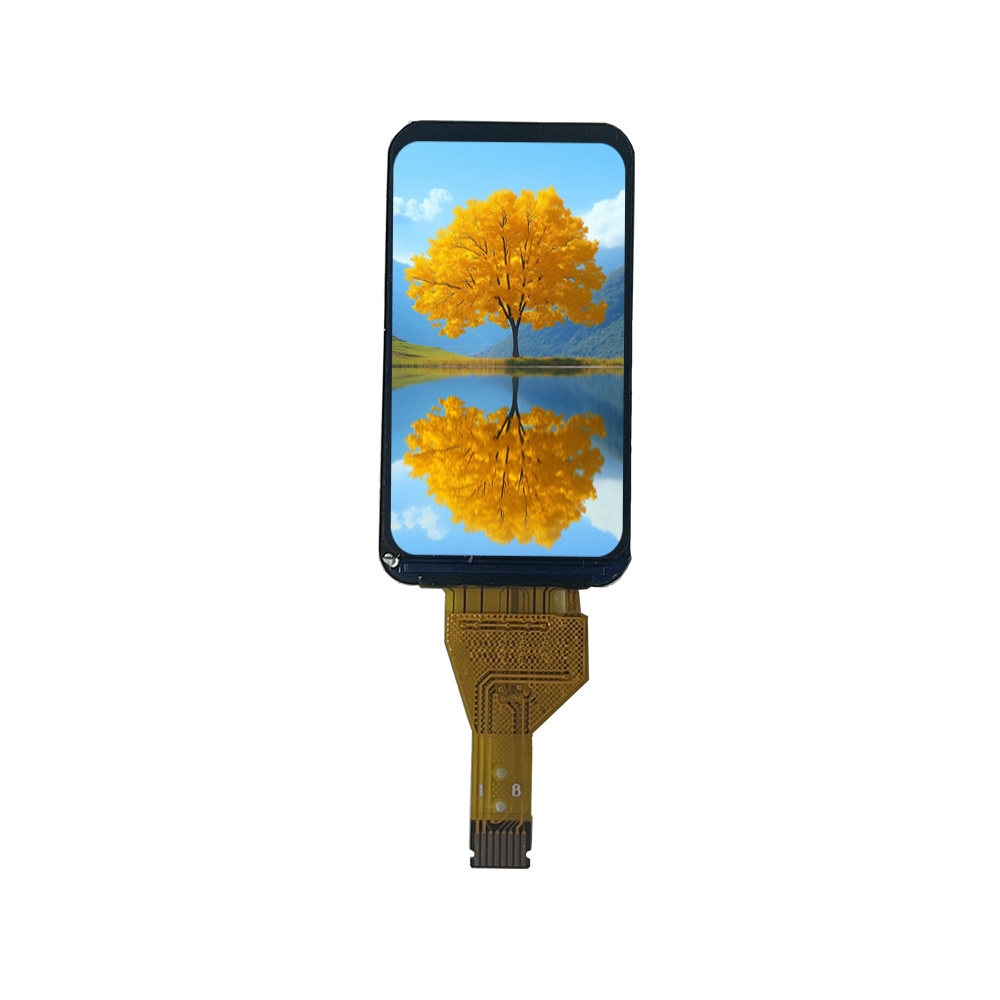

MTF0147AA01A-V1 is a 172RGBX320 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel, driver IC, FPC and a Backlight unit.
Item | Contents |
LCD Size | 1.47 inch(Diagonal) |
Display Mode | Normally black |
Resolution | 172(H)RGB x 320(V) |
Dot pitch | 0.0337(H) x 0.0101(V) mm |
Active area | 17.65(H) x 32.83(V) mm |
Module size | 19.75(H) x 36.86(V) x1.56(D) mm |
Color arrangement | RGB Vtertical stripe |
Interface | SPI |
Drive IC | GC9307 |
Luminance(cd/m2) | 350 |
Viewing Direction | All View |
Backlight | 3 white LED |
Operating Temp | -20℃~+70℃ |
Storage Temp. | -30℃~+80℃ |
