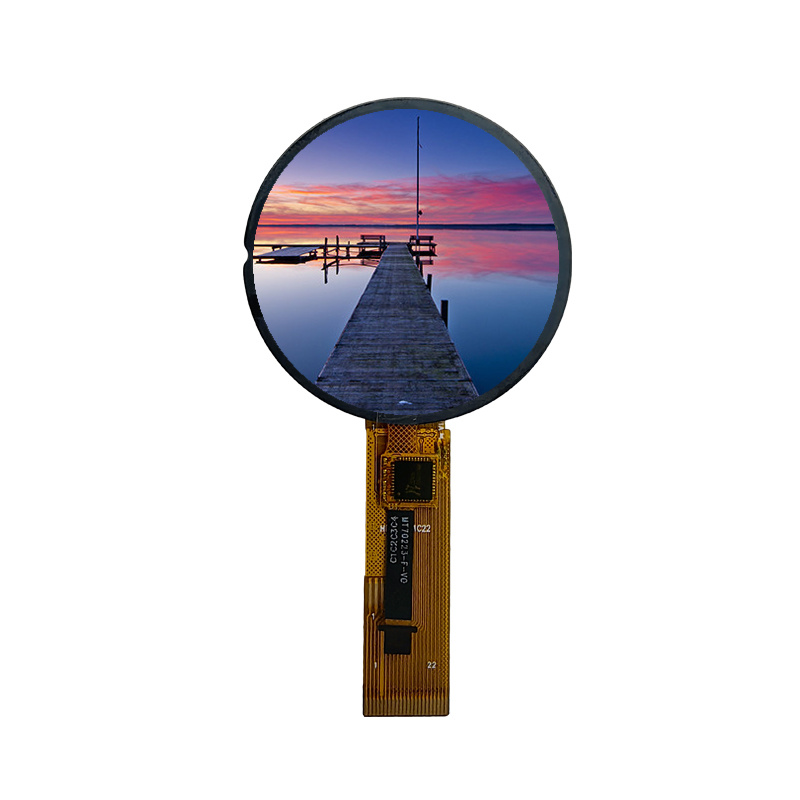

1.39 Inch 360*360 HD Circular Ultra-Thin TFT LCD Display Modules With MCU Interface
MTF0139AA02A-V1
Contact Us：
Product Description
MTF0139AA02A is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystaldisplay (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of aTFT-LCD module (TFT-LCD panel, driver lC and FPC)。The resolution of 1.39" contains 360 RGB X360 pixels and can display up to 262k colors.
| Items | Specification | Unit |
| Drive element | a-Si TFT | - |
| LCM outline size | 37.80 (H) x 39.77 (V) | mm |
| Active area | 35.30(H) x 35.30 (V) | mm |
| Number of pixels | 360(H)X360(V) | pixels |
| Pixel arrangement | RGB Vertical stripe | - |
| Pixel | 98.07x 98.07 | um |
| Display color | 262K | color |
| Viewing direction | ALL | |
| Controller / Driver | GC9B71 | |
| Data interface | MCU 8BIT | |
| Backlight | 3 White LEDs In Parallels |
