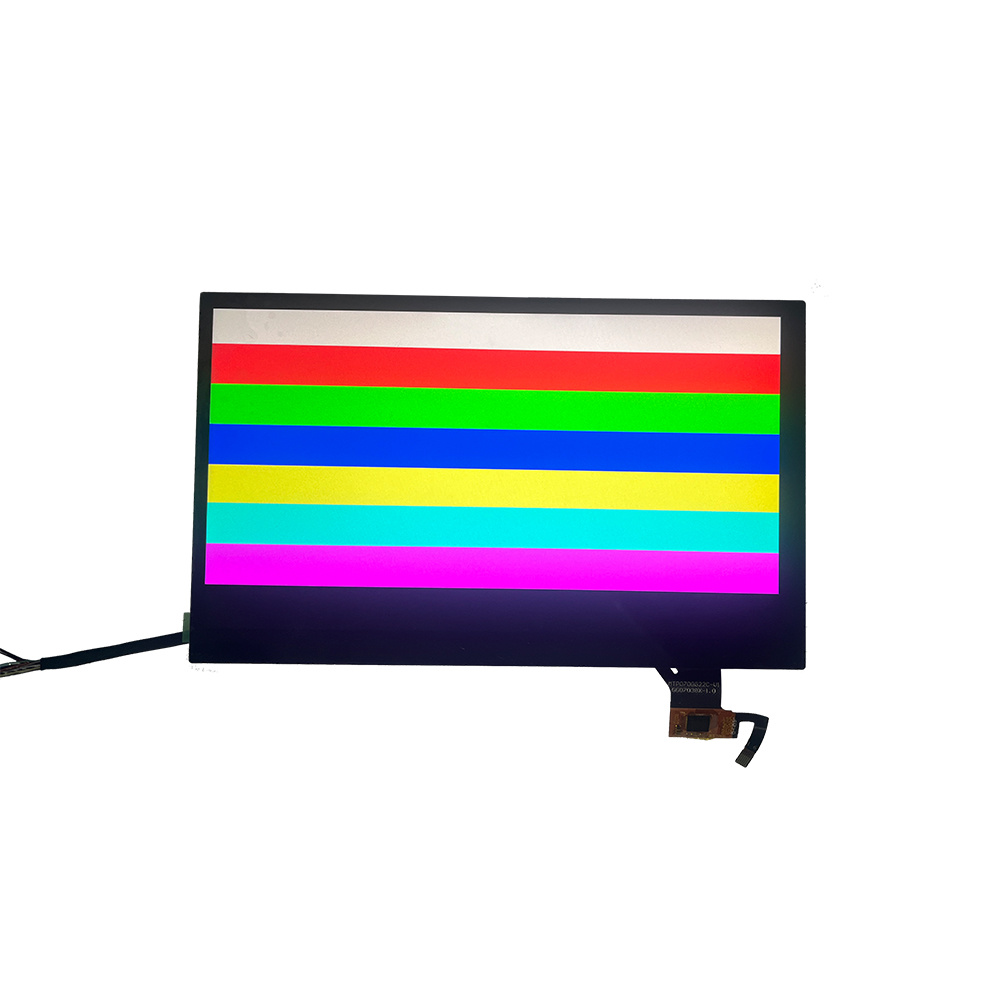

7.0 Inch 1920*1080P High Brightness 500 nits TFT LCD Screen With EDP Interface
MTF070FD96A-V1
Contact Us：
Product Description
General Specifications
| Features | Spec | |
Display Spec. | Size | 7.0 inch |
| Resolution | 1920RGB×1080 | |
| Technology Type | LTPS SFT | |
| Pixel Configuration | R.G.B Vertical Stripe | |
| Pixel pitch(mm) | 0.0807 * 0.0807 | |
| Display Mode | SFT with Normal Black | |
| Surface Treatment | HC | |
| Viewing Direction | All Direction | |
Mechanical Characteristics | LCM (W x H x D) (mm) | 165.04×106.26 ×2.21 |
| Active Area(mm) | 154.944 ×87.156 | |
| Module border(mm) | 5.05/5.05/9.55/9.55 (L/R/U/D) | |
With /Without TSP | With TSP | |
Connection Type | 20682-040E-02 | |
LED Numbers | 40 LEDs (8P5S) | |
Weight (g) | 70 | |
Electrical Characteristics | Interface | eDP 1.4b |
| Differential termination resistance | 85 ± 10 Ω | |
Color Depth | 16.7M (8bit) | |
TCON IC | NT56810 | |
eDP : The DP(Display port) includes main link, aux channel and HPD interface. Main Link and AUX channel are both differential pairs and AC coupled with embedded clock architecture. eDP(Embedded DisplayPort) is based on the DP Standard but mainly used in the embedded system like Notebook, Netbook and All-in-one PCs.
