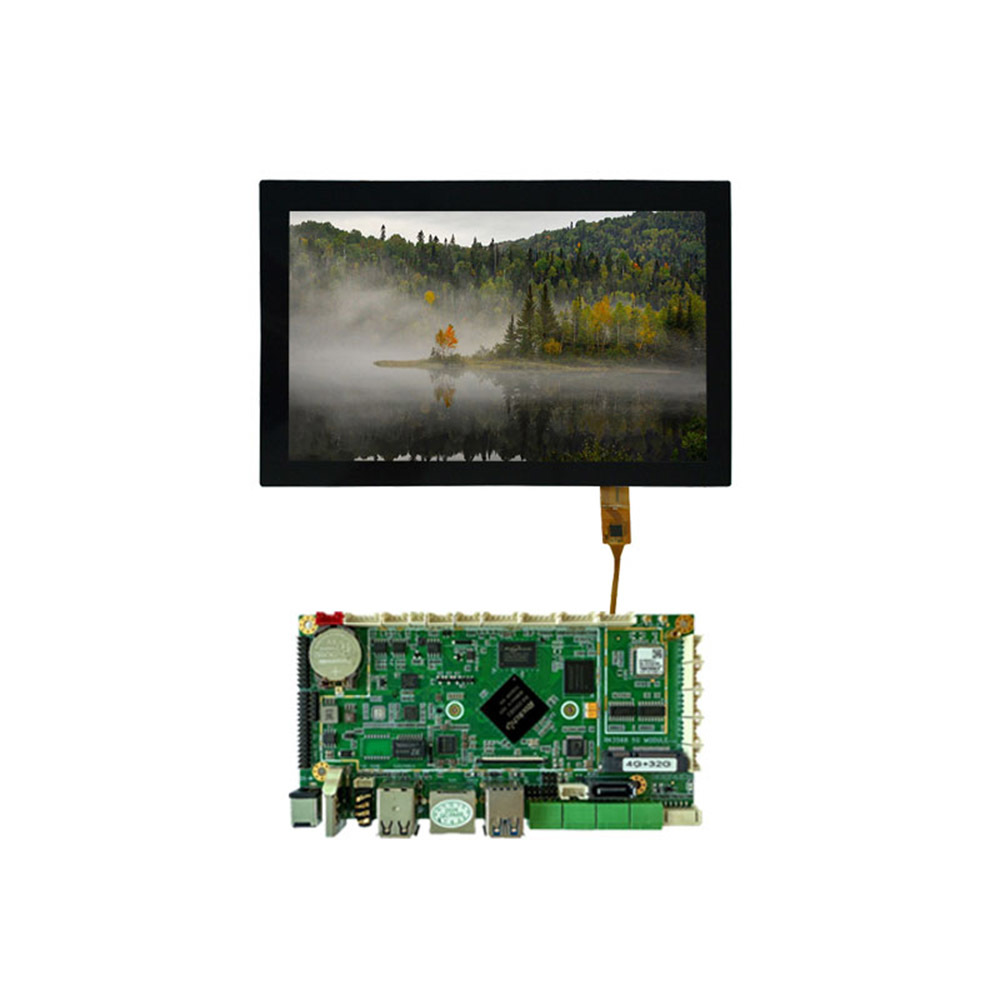

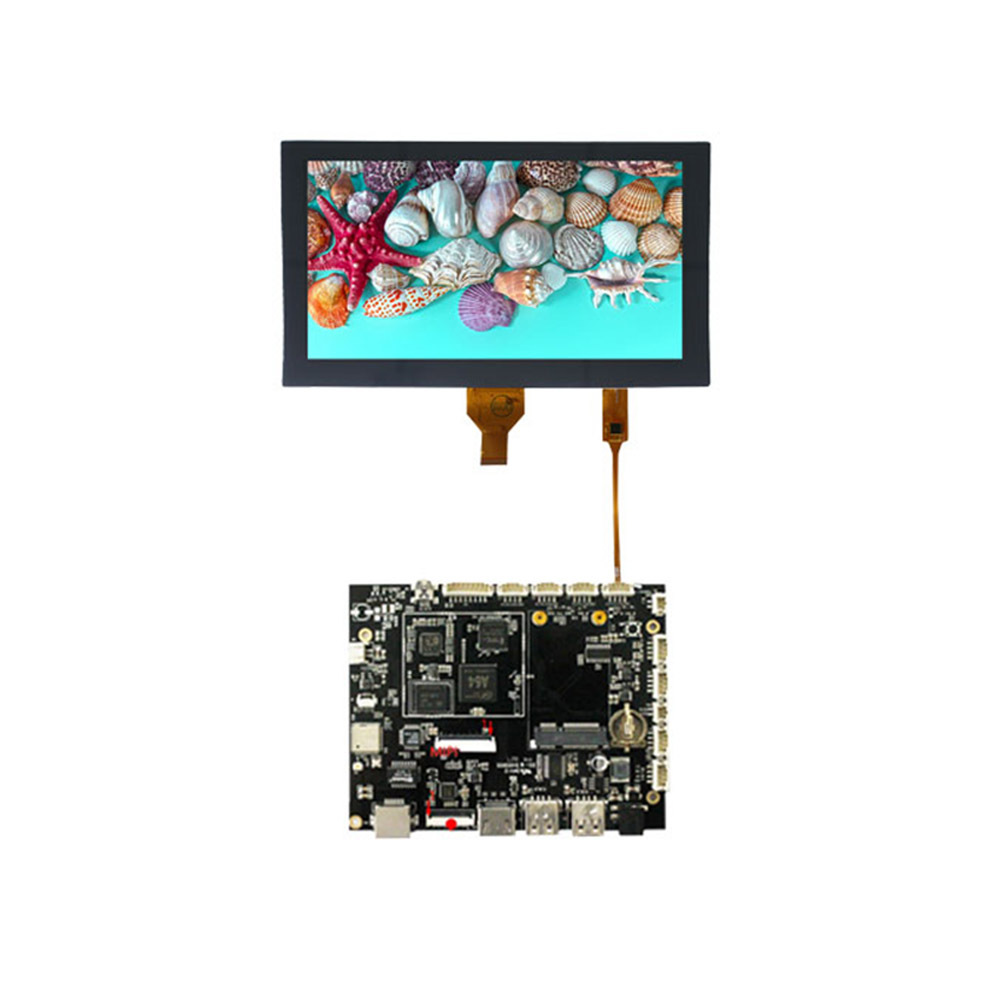

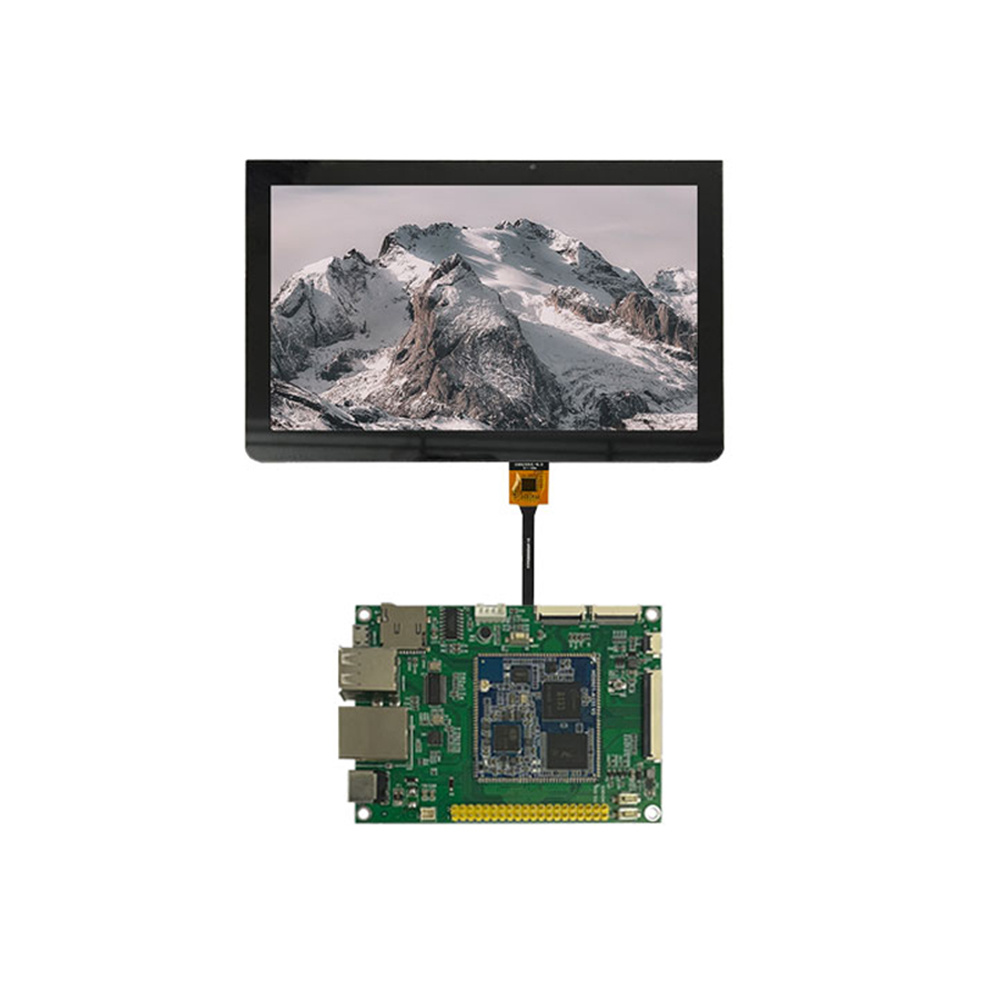

All Winner A64 Motherboard Android System With 7-Inch To 24-Inch TFT Display With Touch
Contact Us：
Product Description
Key Features
◆ High integration. Integrate USB/LVDS/Ethernet/WIFI/BT4.0 (optional) in one, simplify the design of the whole machine, and insert SD card.
◆ High definition. Support 1080P/H.265 video decoding and various LVDS signal/MIPI signal LCD display.
◆ Comes with a power amplifier. Support dual-channel Class D 8R/2W power amplifier.
◆ Rich interfaces. Support USB/serial port/GPIO/ADC interface expansion, which can meet the mainstream peripherals on the market.
◆ Complete functions. Support horizontal and vertical screen playback, video split screen, rolling subtitles, timing switch, USB data import and.other functions.
◆ Convenient management: The user-friendly playlist creation software facilitates the management and control of advertising playback.
Play log to facilitate understanding of the playback situation.
Hardware Specification
| CPU | All Winner A64 ,64bit ,Quad-core，Corte-A53, |
| GPU | 64bit ,Quad-core，Corte-A53, High performance GPU |
| RAM | 1G DDR3 |
| ROM | EMMC 8G (16G optional) |
| Decoding Resolution | Support 1080P/H.265 |
| O.S. | Android 6.0 / 7.1 / 8.1 |
| Play Mode | Support multiple playback modes such as looping, timing, and insertion |
| USB interface | On mainboard: 1way HOST-USB, one way OTG-USB |
| USB OTG | 1way |
| MIPI | 40pin 800*1280 |
| LVDS | 1 way，Can directly drive 50/60Hz LCD screen |
| TTL Output | 50 PIN TTL |
| Audio Output | Left and right channel output 8R/2W speakers |
| RTC | Support RTC (Real Time Clock) |
| Hardware-Watch-dog | Support |
| Timing-on/off | Support |
| O.S Updating | Updating through Computer |
| Special Function | USB automatically imports screen parameters |
