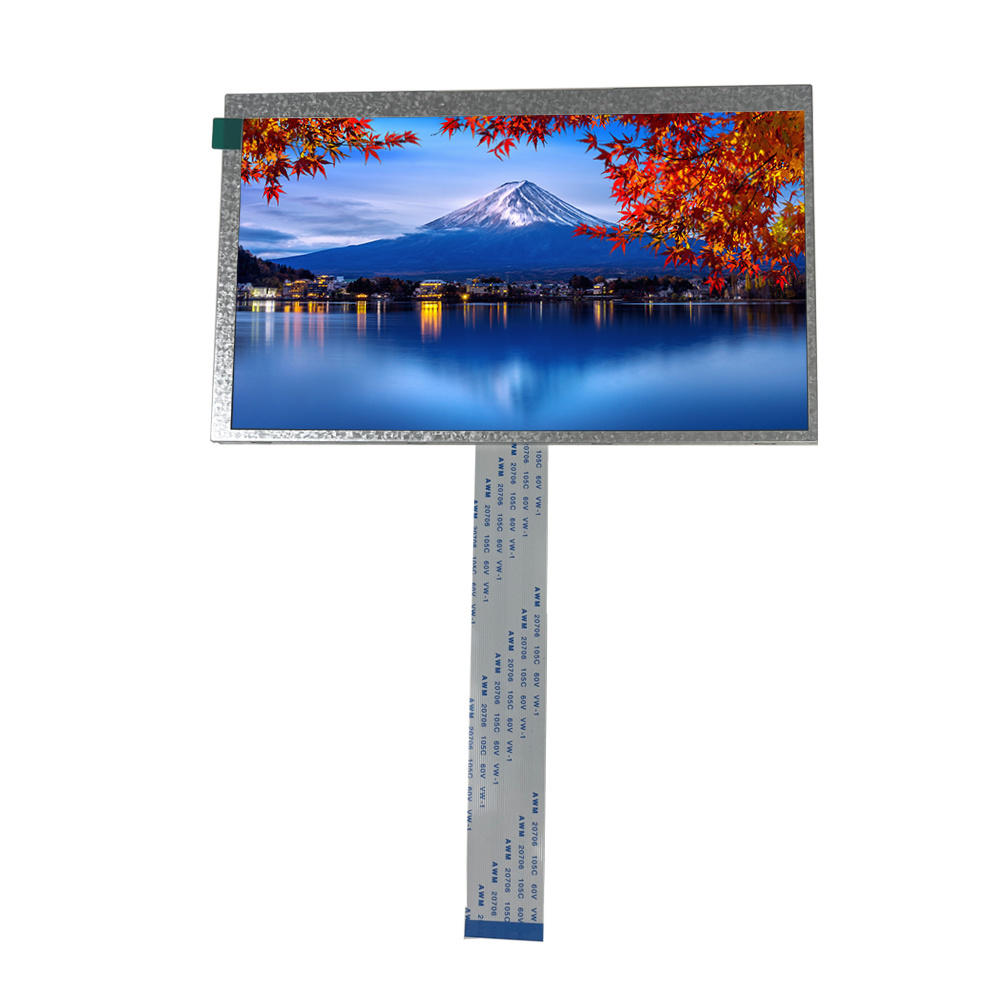

7.0 Inch 1024X600 ER54477 Driver IC 40 Pin TFT LCD Screen With MIPI Interface
MTF070WS108A-V1
Contact Us：
Product Description
General Description
MTF070WS108A-V1 is a Color Active Matrix Liquid Crystal Display adoptsone integral backlight with High brightness 28-lamps white LED. This LCD has 7 inchesdiagonally measured active display area with 1024*600 resolution. With a 8bit bit gray scale signal for each dot and 16.7M colors.With BOE Cell.
Item | Specification |
LCD size | 7.0 inch |
Resolution | 1024(RGB)X600 |
Display mode | Normally Black |
Pixel pitch | 0.0502(H) X RGB X 0.1432(V) mm |
Active area | 154.21(H)X85.92 (V) mm |
Module size | 164.9 (H)X100.00(V)X3.5(T)mm |
Pixel arrangement | RGB-stripe |
Surface Treatment | AG |
Interface | MIPI |
Viewing Direction | Full Viewing |
NTSC | 50% |
Backlight | White LED |
Panel power consumption | TBD |
