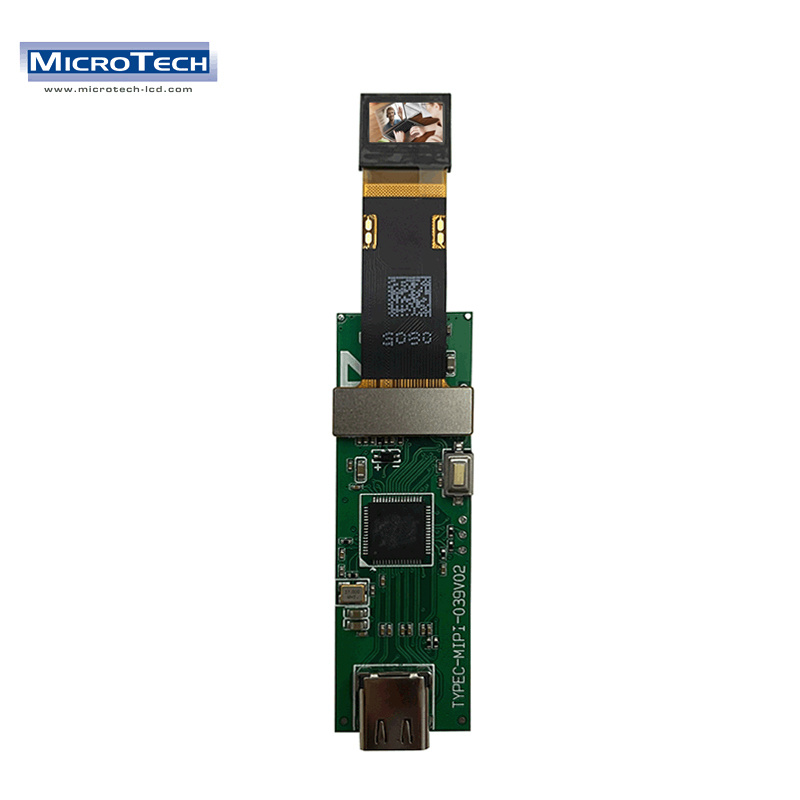

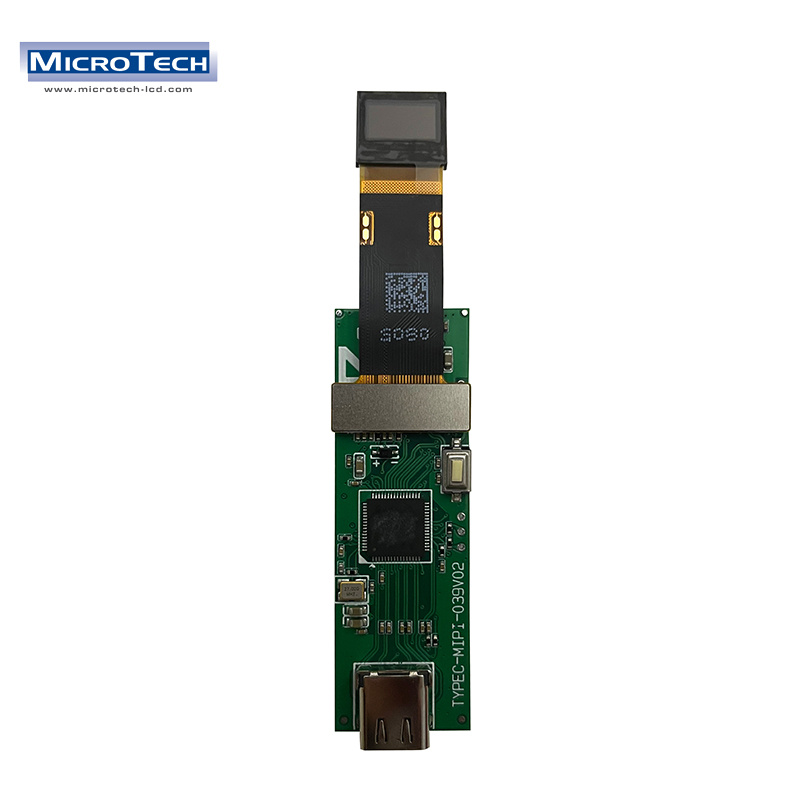

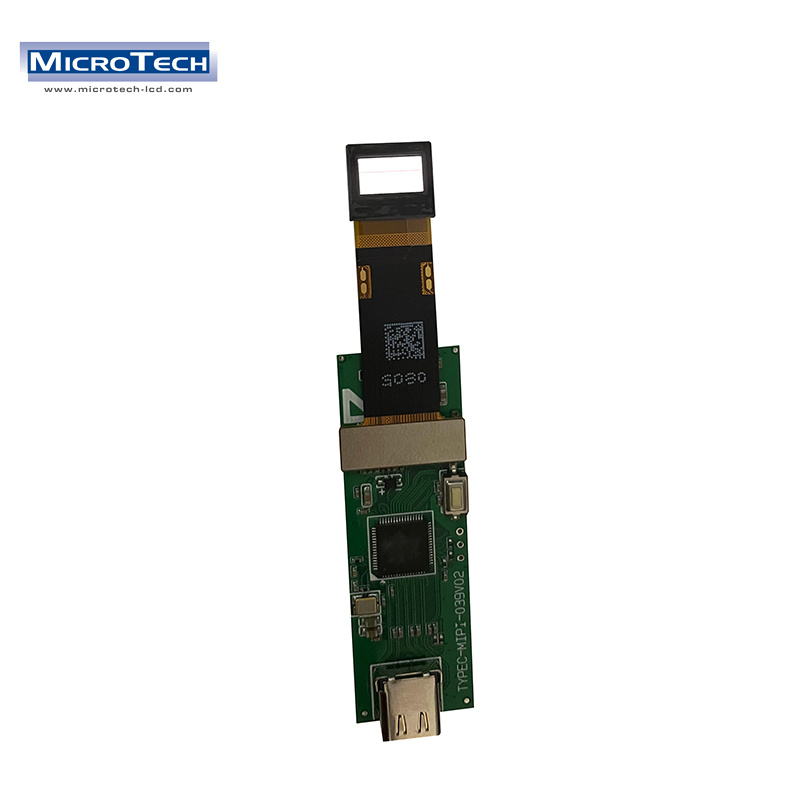

0.39 inch AMOLED FHD 1920 x1080 MIPI/Type-c Interface OLED Display for AR/VR Head mounted/Near-Eye Displays
MTL0039FD02A-V1
Contact Us：
Product Description
0.39 inch AMOLED FHD 1920 x1080 MIPI/Type-c Interface OLED Display for AR/VR Head mounted/Near-Eye Displays
1. Overview/Application
MTL0039FD02A-V1 is a 0.39 inch（1 cm) diagonal, FHD resolution(1920 x1080), active matrix color OLED (Organic Light Emitting Display)panel module based on single crystal silicon backplane . The pixel circuits and driving IC are integrated on the silicon backplane to get the compact size and very low power consumption.
(Potential applications: Virtual Reality application（AR/VR）, Head mounted displays, Near-Eye Displays etc.)
2. Features
Small-size, high resolution 0.39 FHD Display PPI=5644
AP Operated Resolution (8*M, M=40~240) x RGB x (8*N, N=30~135)
Full color mode，16.7M colors
Fast response
Thin and light in weight
Color enhancement, Sharpness enhancement
High contrast mode
High fluency mode
Power-saving (PS) mode
Scan direction selection, up or down
Interface，Support MIPI only or MIPI(data)+I2C(CMD)

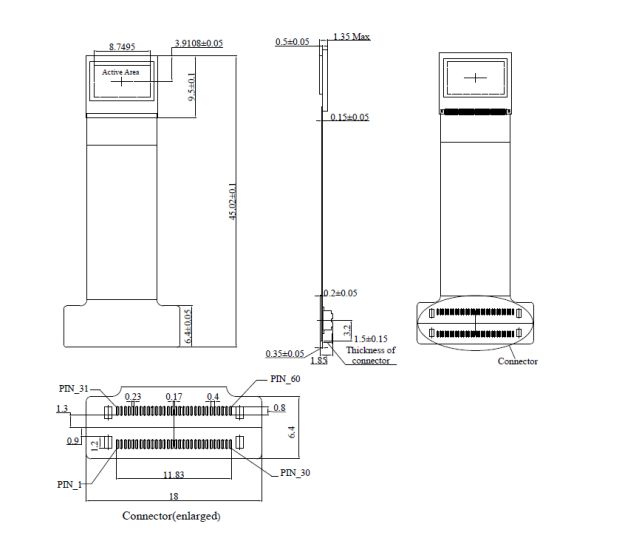

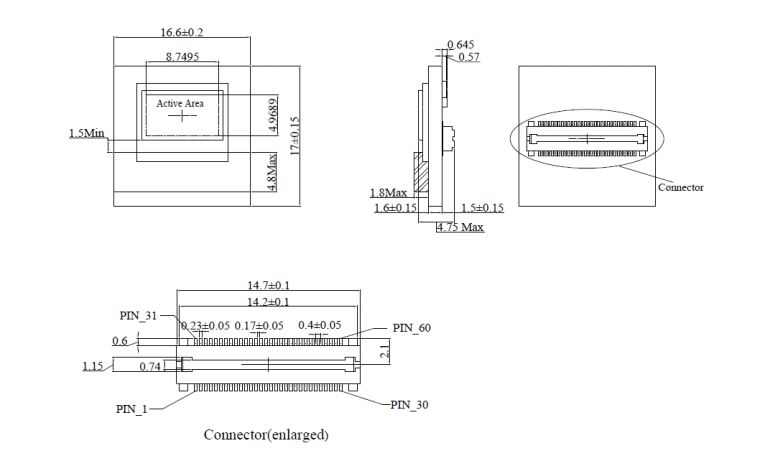

3. Module Structure
Active matrix color OLED display with on-chip driver based on single crystal silicon transistors
